Force Diagrams Worksheet With Answers Free body diagrams are diagrams used to show the relative magnitude and direction of all forces acting upon an object in a given situation A free body diagram is a special example of the vector
In this answer key you will find step by step explanations and examples of how to draw force diagrams for different scenarios Each scenario will involve one or more forces acting on an object and you will learn how to correctly represent these forces using arrows and labels Free body diagrams showing these forces their direction and their relative magnitude are often used to depict such information In this Lesson The Physics Classroom discusses the details of constructing free body diagrams
Force Diagrams Worksheet With Answers
Force Diagrams Worksheet With Answers
https://www.worksheeto.com/postpic/2014/02/forces-worksheets-middle-school_257117.png
Worksheet Force Diagrams Answers 454602 Free Worksheets Samples
https://www.housview.com/wp-content/uploads/2018/09/worksheet_force_diagrams_answers_454602_1.png
Force Diagrams 101 Diagrams
https://www.101diagrams.com/wp-content/uploads/2018/03/Simple-Force-Diagrams.jpg
Draw a free body diagram for each and show the directions of forces as well as the total net force and direction of net force Example Mr Collins lifts a heavy box over his head with one push of the arm and a force of 250 newtons Gravity is pulling down the mass with 200 newtons What is the net force and direction of the box What is a force Often used in dynamics questions The worksheets on pages 3 and 4 give practice in showing forces on diagrams Possible answers are given below but some forces such as air resistance may be added omitted depending whether or not they are considered negligible The
In each of the following situations represent the object with a particle Sketch all the forces acting upon the object making the length of each vector represent the magnitude of the force Object lies motionless 2 Object slides at constant speed without friction 3 Object slows due to kinetic friction 4 Object slides without friction 5 Draw separate free body force diagrams showing the forces acting on each of the following objects Label the forces on your diagrams The mass M State where in your diagrams answers above you used the facts that the string is light and the pulley is smooth
More picture related to Force Diagrams Worksheet With Answers
Drawing Force Diagrams Worksheet
https://i2.wp.com/s3.studylib.net/store/data/025358914_1-3792c414d03727362a543fa82b958732.png
Worksheet 2 Drawing Force Diagrams Db excel
https://db-excel.com/wp-content/uploads/2019/09/unit-6-worksheet-1-force-identification-749x970.png

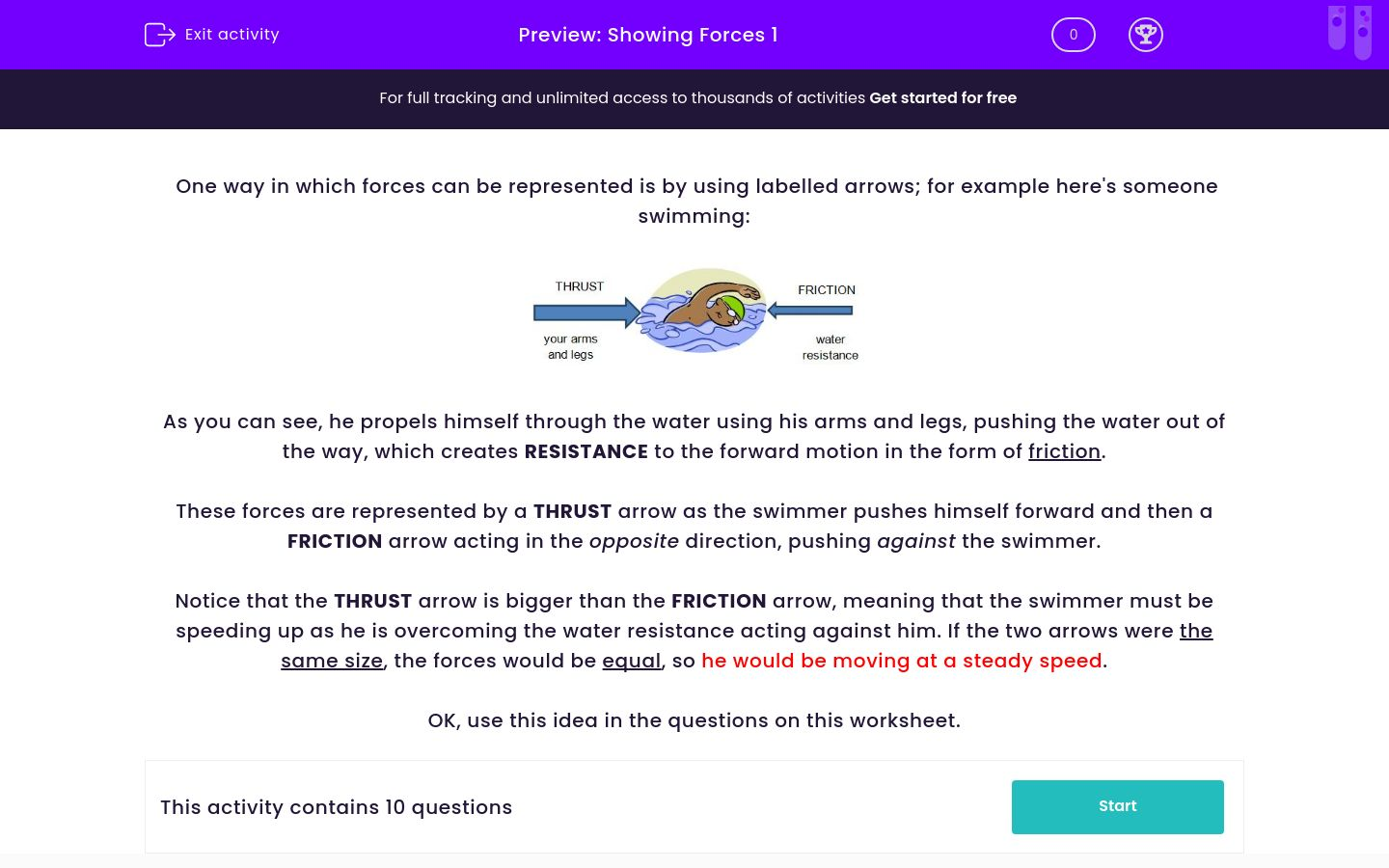

Analyse Force Diagrams Worksheet EdPlace
https://edplaceimages.s3.amazonaws.com/worksheetPreviews/worksheet_1632158073.jpg
Download a free body diagram worksheet with answers in PDF format Practice solving physics problems and understanding forces with this helpful resource In worksheet 2 students are presented with a variety of situations and asked to draw force diagrams to represent the forces at play The answers to this worksheet provide a valuable resource for students to assess their understanding of
This document provides instructions for a worksheet involving drawing force diagrams for various physical situations Students are asked to draw and label the forces acting on objects that are motionless moving at constant speed accelerating falling rising or being pulled along surfaces Determine the Net Force on the object in each situation below You must draw a FBD and label the force vectors with the size of the force Problem 1 is completed as an example 1 You push a 100N box across the floor with a 50N force The force of friction is 5N F up down 100N 100N 0N App F left right 50N 5N 45N
Worksheets 2 Drawing Force Diagrams
https://www.unmisravle.com/wp-content/uploads/2018/05/free_2.png
Worksheet 2 Drawing Force Diagrams
https://i2.wp.com/s2.studylib.net/store/data/012116299_1-f6c04a05878e13aab5e14aee3c66cbf7.png
Force Diagrams Worksheet With Answers - Draw a free body diagram for each and show the directions of forces as well as the total net force and direction of net force Example Mr Collins lifts a heavy box over his head with one push of the arm and a force of 250 newtons Gravity is pulling down the mass with 200 newtons What is the net force and direction of the box What is a force
